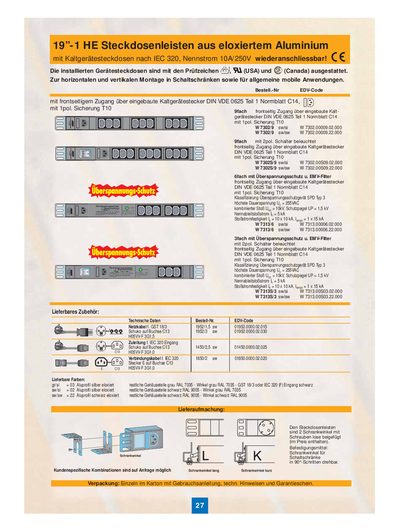

The document describes a customizable power strip with various accessories and color options. The product is suitable for installation in cabinets or for general mobile applications.
The 19-1 HE power strip is made of anodised aluminium and equipped with IEC 320 cold‑device sockets, suitable for horizontal or vertical mounting in switch cabinets or mobile applications. It includes a 1‑pole T10 fuse and complies with US and Canadian certification marks.
The product is offered in several colour options (aluminium‑silver, aluminium‑grey, aluminium‑black) and can be ordered with various accessories such as over‑voltage protection (SPD type 3) and illuminated switches. Technical data, ordering numbers and mounting hardware are provided for easy integration. This manual is written in German.
| Rated current / voltage | 10 A / 250 V |
|---|---|
| Fuse type | 1‑pole T10 |
| Socket standard | DIN VDE 0625 part 1 C14 |
| Over‑voltage protection | SPD type 3 |
| Maximum continuous voltage | 255 VAC |
| Surge voltage rating | 10 kV |
| Surge current rating | 5 kA |
The strip is rated for 10 A at 250 V.
It uses a 1‑pole T10 fuse.
It includes an SPD type 3 over‑voltage protection device.
The strip uses DIN VDE 0625 part 1 (C14) cold‑device sockets.
