The D6000S/n-3S is a re-connectable plug strip with a switch produced by APSA. It is suitable for DIN 49440, CEE7-III, (Schuko16/250~) with switch, head (switch code: 3S). The product has a quantity of 3, 6, 9, 12 sockets, with lengths of 262, 394, 526, 658 mm and EDV numbers of 4000993005538, 4000993005545, 4000993005552, and 4000993005569. The rated voltage, rated current, and protection class are respectively 250VAC, 16A, and IP20.
The APSA D6000S/n-3S is a multi‑outlet power strip (DIN 49440, CEE7‑I) with a front‑mounted switch (code 3S). It complies with DIN VDE 0620‑1 safety norms and carries CE and VDE‑GS markings.

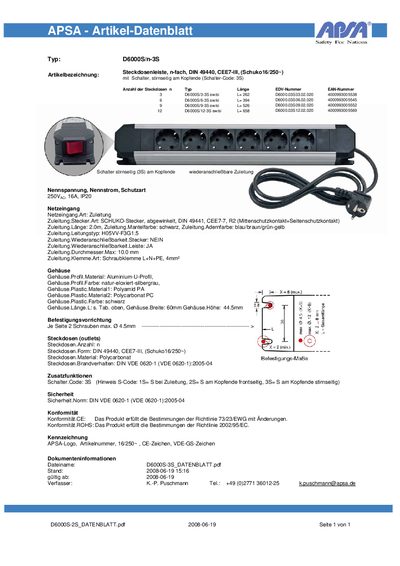

The document lists electrical ratings, cable details, housing materials, outlet configuration and conformity information, providing all technical data needed for specification and installation. This manual is written in German.
| Cable length | 2.0 m |
|---|---|
| Cable sheath colour | black |
| Conductor colours | blue/brown/green‑yellow |
| Cable type | H05VV‑F3G1.5 |
| Maximum cable diameter | 10.0 mm |
| Input plug type | Schuko, angled, DIN 49441, CEE7‑7, H2 |
| Housing material | Aluminium U‑profile |
| Housing colour | natural anodised silver‑gray |
| Housing plastic (1) | Polyamide PA |
| Housing plastic (2) | Polycarbonate PC |
| Housing plastic colour | black |
| Width | 60 mm |
| Height | 44.5 mm |
| Outlet form | DIN 49440, CEE7‑Z‑1 (Schuko 16/250) |
| Outlet material | Polycarbonate |
| Switch code | 3S (front‑mounted) |
It uses a Schuko plug, angled, conforming to DIN 49441, CEE7‑7, H2.
The maximum cable diameter is 10.0 mm.
