Apsa DIN 4944X_16 is a kind of protection contact plug.

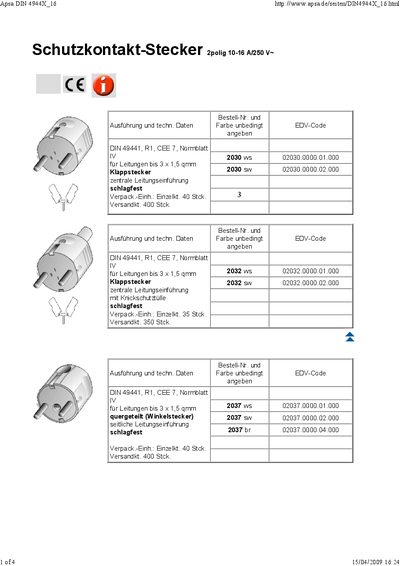

This leaflet provides ordering numbers, technical specifications and packaging details for APSA Schutzkontakt‑Stecker (protective‑contact plugs). It lists several part numbers (e.g., 2030, 2032, 2037, 2029, 2039, 1050T, 2040, 1060) covering different configurations such as central or side cable entry and optional bend‑protecting sleeves.
All variants are rated for 10‑16 A at 250 V, suitable for cables up to 3 × 1.5 mm² (or 3 × 2.5 mm² for higher‑rated types) and feature IP44, shock‑resistant construction. Packaging is indicated per single unit quantities ranging from 25 to 40 pieces. This manual is written in German.
| Current rating | 10‑16 A |
|---|---|
| Voltage rating | 250 V |
| Maximum cable cross‑section | 3 × 1.5 mm² (or 3 × 2.5 mm² for some types) |
| IP protection | IP44 |
| Packaging unit | 40 pieces per single‑unit pack (varies by type) |
They are rated for 10‑16 A.
They are suitable for cables up to 3 × 1.5 mm², and some variants up to 3 × 2.5 mm².
The plugs have an IP44 rating and are shock‑resistant.
Packaging is in single‑unit packs, typically 40 pieces per box, though quantities vary by type.
