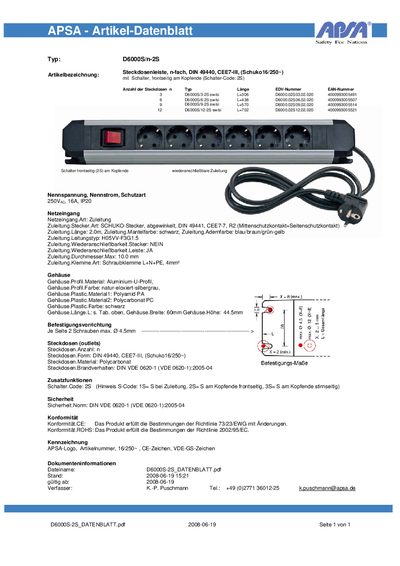

D6000S-2S is a multi-function socket from APSA, with a switch and a detachable power cable. It is available in 3, 6, 9, and 12 socket configurations.
The APSA D6000S/n-2S is a multi‑outlet power strip (Steckdosenleiste) with a front‑mounted switch (code 2S). It conforms to DIN 49440 and uses a Schuko‑type CEE7‑I plug. The device is offered in versions with 3, 9, or 12 outlets.
Technical data include a nominal voltage of 250 Vac, nominal current of 16 A, and protection class IP20. The cable is 2.0 m long, type H05VV‑F3G1.5, with a black sheath and blue/brown/green‑yellow conductors. The housing is an aluminium U‑profile, natural‑anodised silver‑gray, with polyamide and polycarbonate plastic parts. The product meets DIN VDE 0620‑1 safety standards and carries CE and VDE‑GS markings. This manual is written in German.
| Nominal Voltage | 250 Vac |
|---|---|
| Nominal Current | 16 A |
| Protection Class | IP20 |
| Cable Length | 2.0 m |
| Cable Type | H05VV‑F3G1.5 |
| Housing Material | Aluminium U‑profile |
| Housing Color | Natural anodised silver‑gray |
| Front Switch Code | 2S |
| CE Conformity | Yes |
| VDE‑GS Conformity | Yes |
The strip is rated for 250 Vac and 16 A.
It complies with DIN VDE 0620‑1 (2005‑04).
