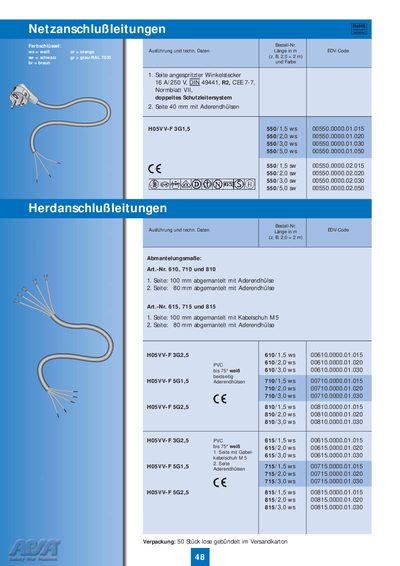

This is a catalog of connectors, including connector models, colors, lengths, etc.
The document provides a comprehensive list of ordering numbers (Bestell‑Nr.) for different cable types, including their length in metres and colour codes. It also details the required stripping lengths and packaging information.
Cable families such as 550, 610, 710, 810, 615, 715 and 815 are described with their conductor sizes, insulation types (e.g., HOSVV‑F 3G2,5), and standard lengths ranging from 1.5 m to 5.0 m. The sheet includes current ratings, DIN standards, and notes on double protective conductor systems. This manual is written in German.
| Current rating | 16 A / 250 V |
|---|---|
| Cable type (example) | HOSVV‑F 3G2,5 |
