This document lists a large number of German EMV power connection line product information, including product model, specifications, color, etc.

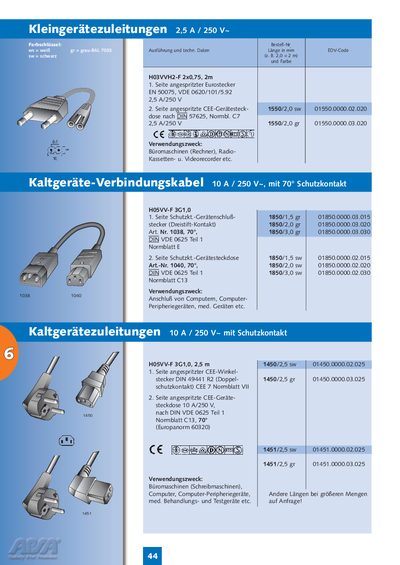

This sheet lists the specifications for small‑appliance power cords (Kleingerätezuleitungen) rated at 2.5 A and 250 V. It provides order numbers, available lengths, connector types and colour coding for use with office machines, radios, video recorders and similar equipment.
The cords comply with European standards such as EN 50075, VDE 0620/101/5.92 and DIN VDE 0625. Different connector variants (Europlug, CEE, Schutz‑Kontakt) are described together with their part numbers and applicable norm sheets. This manual is written in German.
| Current rating | 2.5 A |
|---|---|
| Voltage rating | 250 V |
| Length unit | 1 m per 0.5 unit (e.g., 2,0 = 2 m) |
| Wire colour codes | ws = white, sw = black |
| Connector type (example) | Europlug (Eurostecker) |
| Applicable standards (Europlug) | EN 50075, VDE 0620/101/5.92 |
White is marked ws and black is marked sw.
They are rated for 2.5 A at 250 V.
The Europlug version complies with EN 50075 and VDE 0620/101/5.92.
