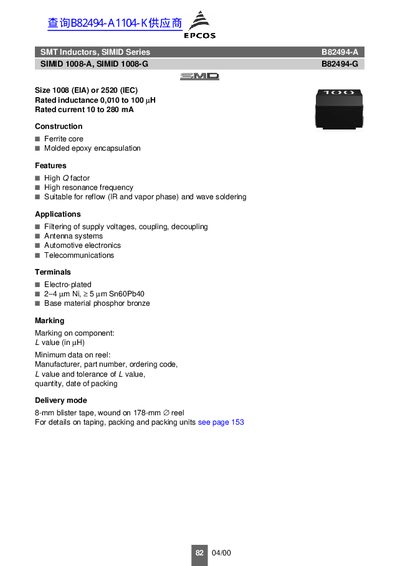

SIMID 1008-A, SIMID 1008-G series inductors are available in 1008 (EIA) or 2520 (IEC) size with rated inductance of 0.010 to 100 µH and rated current of 10 to 280 mA. The inductors feature ferrite core, high Q factor, high resonance frequency, and are suitable for reflow (IR and vapor phase) and wave soldering. They are widely used in filtering supply voltages, coupling and decoupling, antenna systems, automotive electronics and telecommunications terminals.
The SIMID Series from EPCOS comprises surface‑mount inductors with ferrite cores and molded epoxy encapsulation. They offer a high Q factor, high resonance frequency, and are suitable for both reflow (IR and vapor phase) and wave soldering processes. Typical applications include filtering of supply voltages, coupling, decoupling, antenna systems, automotive electronics, and telecommunications.
The handbook lists detailed technical data such as inductance range, rated current, self‑resonance frequency, DC resistance, climatic category, solderability, and permissible PCB bending. Dimensional drawings, layout recommendations, and a full set of ordering codes for both non‑shielded and shielded versions are provided, together with packaging details (8‑mm blister tape on 178‑mm reels).
| Size | 1008 (EIA) or 2520 (IEC) |
|---|---|
| Rated inductance | 0.010 to 100 µH |
| Rated current | 10 to 280 mA |
| Weight | Approx. 21 mg |
| Self‑resonance frequency (minimum) | Measured with network analyzer HP 8753 |
| Solderability (wetting) | > 90 % |
The inductance ranges from 0.010 to 100 µH.
They are rated for 10 to 280 mA.
They are supplied on 8‑mm blister tape wound on a 178‑mm reel.
Each component weighs approximately 21 mg.
