This document introduces an inductor with a size of 10x10 mm, featuring a wide temperature range, very high rated current, low DC resistance, etc. It is suitable for applications such as filtering of supply voltages, coupling, decoupling, DC/DC converters, and automotive electronics.

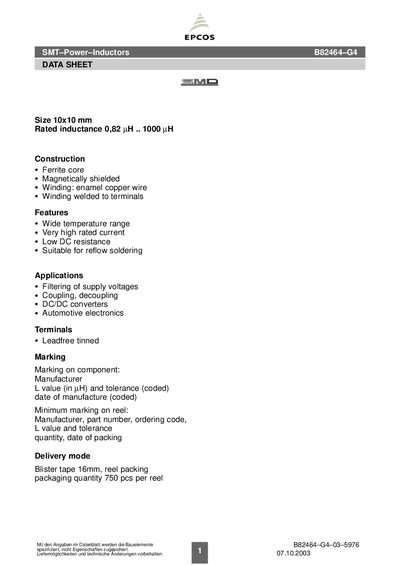

The B82464-G4 is a 10 × 10 mm surface‑mount power inductor with a ferrite core, magnetically shielded construction and enamel copper wire windings. It is designed for reflow soldering and features a wide temperature range, very high rated current, and low DC resistance, making it suitable for filtering supply voltages, coupling/decoupling, DC‑DC converters and automotive electronics.
Technical data include rated inductance from 0.82 µH to 1000 nH, rated current with a 40 K temperature rise at 85 °C ambient, self‑resonance frequency measured with a network analyzer, IEC‑compliant climatic category (55/125/56), solderability of 5 s at 235 °C with >90 % wetting, and a DC resistance measured at 20 °C. Ordering codes and delivery options (blister tape or reel, 750 pcs per reel) are also listed. This manual is written in German.
| Size | 10 × 10 mm |
|---|---|
| Rated inductance range | 0.82 µH – 1000 nH |
| Climatic category | IEC 60068‑1 55/125/56 |
| Solderability | 5 s at 235 °C, wetting >90 % |
The inductor measures 10 × 10 mm.
It can be supplied in blister tape (16 mm) or reel packing, with 750 pieces per reel.
The rated inductance ranges from 0.82 µH to 1000 nH.
It complies with IEC 60068‑1 climatic category 55/125/56.
