This PDF file introduces the features and characteristics of EPCOS SIOV-CT 0603 M 4 G Schottky Diode, including structure, features, sizes, packaging, supply, technical specifications, etc.

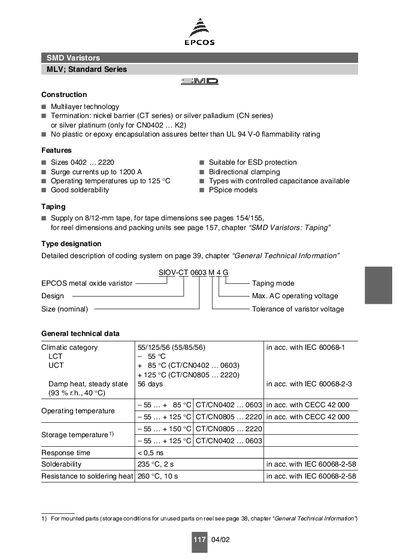

The MLV Standard Series SMD varistors are built with multilayer technology and are offered with either nickel‑barrier (CT) or silver‑palladium (CN) terminations. They are designed for ESD protection, feature bidirectional clamping, and support surge currents up to 1200 A. The series is available in sizes from 0402 to 2220 and can be supplied on 8 mm or 12 mm tape or reels.
Technical data include operating temperatures up to 125 °C, response time under 0.5 ns, and solderability of 235 °C for 2 s. Detailed tables list maximum ratings, characteristic curves, ordering codes, dimensions and recommended solder‑pad layouts for each size. Contact information for EPCOS sales offices and legal notices are provided at the end of the brochure.
| Termination options | nickel barrier (CT) or silver palladium (CN) |
|---|---|
| Surge current rating | up to 1200 A |
| Operating temperature range | up to 125 °C |
| Response time | < 0.5 ns |
| Solderability | 235 °C for 2 s |
| Weight per component | < 0.2 g |
They can be supplied with either nickel‑barrier (CT) termination or silver‑palladium (CN) termination.
The varistors are rated for surge currents up to 1200 A.
For 0402‑0603 sizes the limit is 85 °C, while 0805‑2220 sizes are rated up to 125 °C.
The brochure provides specific pad dimensions for each size; for example, the SIOV‑CT/CNO402 type uses a 0.6 mm × 1.7 mm pad arrangement.
