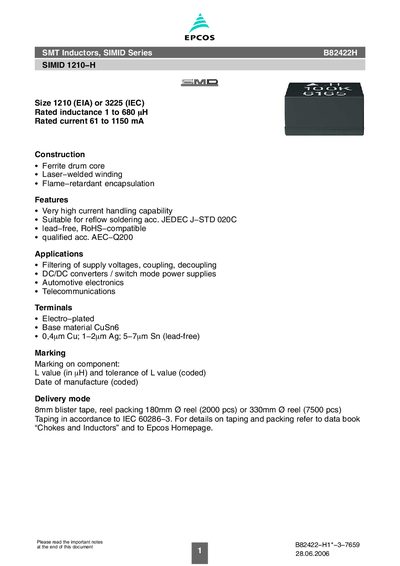

This document is the datasheet for B82422H series SMT inductors.
The B82422H is part of EPCOS' SIMID series of surface‑mount inductors. It features a ferrite drum core, laser‑welded winding, and flame‑retardant encapsulation, offering very high current handling capability and suitability for reflow soldering per JEDEC J‑STD‑020C.
Typical applications include filtering of supply voltages, coupling, decoupling, DC/DC converters, automotive electronics, and telecommunications. The part is supplied in 8 mm blister tape or on reels (180 mm or 330 mm) and complies with RoHS and AEC‑Q200 qualifications.
| Rated inductance | 1 to 680 nH |
|---|---|
| Rated current | 61 to 1150 mA |
| Size | 1210 (EIA) or 3225 (IEC) |
| Core material | Ferrite |
| Weight | Approx. 50 mg |
| Climatic category | 55/150/56 to IEC 60068-1 |
| Packaging | 8mm blister tape or reel (2000/7500 pcs) |
The B82422H offers a rated inductance from 1 nH up to 680 nH.
It is suitable for filtering supply voltages, coupling, decoupling, DC/DC converters, automotive electronics, and telecommunications.
It is supplied in 8 mm blister tape or on reels of 180 mm (2 000 pcs) or 330 mm (7 500 pcs).
The component weighs approximately 50 mg.
