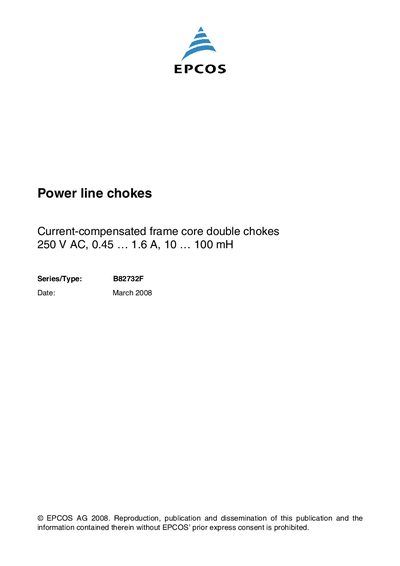

This document describes the features and characteristics of the Power line chokes Current-compensated frame core double chokes produced by EPCOS AG, including rated voltage, rated current, rated inductance, and construction.
The EPCOS B82732F is a current‑compensated frame‑core double choke designed for power‑line applications. It offers a rated voltage of 250 V AC, a current range of 0.45 A to 1.6 A, and inductance values from 10 mH to 100 mH. The component features a compact 14 mm height, lead‑free pins (0.7 × 0.7 mm) with a 10 × 18.75 mm pitch, and complies with EN 60938‑2 and UL 1283 approvals.
The datasheet includes dimensional drawings, ordering codes, electrical characteristics, and safety notes. It also provides cautions for soldering, potting, and handling, as well as RoHS compatibility and VDE/UL pending approvals. Users should refer to the cautions and important notes sections for proper integration and reliability considerations.
| Rated voltage | 250 V AC |
|---|---|
| Rated current | 0.45 A to 1.6 A |
| Rated inductance | 10 mH to 100 mH |
| Height | 14 mm |
| Pin size | 0.7 × 0.7 mm |
| Pin spacing | 10 × 18.75 mm |
| Inductance tolerance | +30 % / –50 % at 20 °C |
| Weight | ≈ 18 g |
| Approvals | EN 60938‑2, UL 1283 (pending VDE/UL) |
| RoHS compatibility | Yes |
The B82732F is rated for 250 V AC.
It complies with EN 60938‑2 and UL 1283, with VDE and UL approvals pending.
The pins are 0.7 × 0.7 mm with a spacing of 10 × 18.75 mm.
Yes, the component is RoHS‑compatible.
