B82462-A4 is a SMD power inductor product from EPCOS. It features a wide temperature range, high rated current and low DC resistance. It is suitable for applications such as filtering of supply voltages, coupling, decoupling, DC/DC converters and automotive electronics.
The B82462-A4 series are 6 × 6 mm SMT power inductors with ferrite cores, designed for reflow soldering and suitable for a wide temperature range. Typical applications include filtering of supply voltages, coupling/decoupling, DC/DC converters, and automotive electronics.

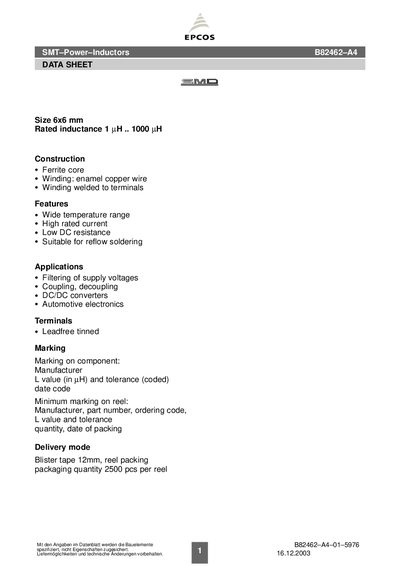

The data sheet lists detailed technical parameters such as rated inductance (1 µH‑1000 µH), rated current, saturation current, DC resistance, self‑resonance frequency, weight, and climatic category. It also provides ordering codes for various inductance values and packaging options (blister tape or reel). This manual is written in German.
| Size | 6x6 mm |
|---|---|
| Rated inductance range | 1 µH – 1000 µH |
| Rated current (Ip) | Maximum permissible DC with ΔT ≤ 40 K at 85 °C |
| Saturation current (Isat) | Maximum permissible DC with inductance decrease AL/Lo = 10 % |
| Climatic category | IEC 60068‑1 55/125/56 |
| Solderability | 5 s, 235 °C, wetting > 90 % |
| DC resistance (Rmax) | Measured at 20 °C |
| Self‑resonance frequency (fres) | Measured with network analyzer HP 8753 |
| Weight | ≈0.75 g |
| Packaging quantity per reel | 2500 pcs |
Each B82462-A4 inductor measures 6 × 6 mm.
The series offers inductance values from 1 µH up to 1000 µH.
They are supplied either on 12 mm blister tape or in reel packs of 2500 pieces.
