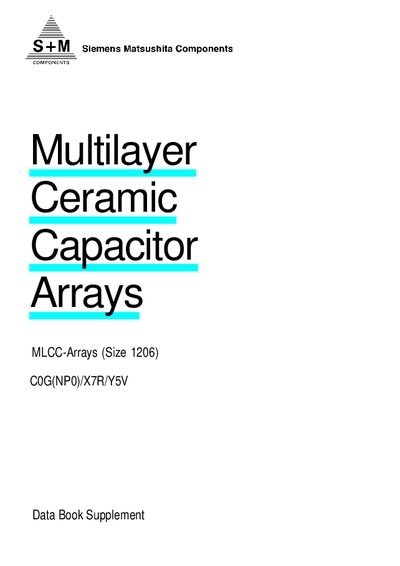

This document describes the features and characteristics of Siemens Matsushita Components' Multilayer Ceramic Capacitor Arrays (Size 1206). The product utilizes C0G (NP0), X7R, and Y5V dielectric materials and is suitable for the reflow soldering process. It is available in rated voltages of 50V, 16V, and 25V, and offers excellent temperature stability and capacitance stability.
The document provides a data‑book supplement for Siemens multilayer ceramic capacitor (MLCC) arrays in the 1206 package. It lists three dielectric options – COG(NPO), X7R and Y5V – and gives the available capacitance values, voltage ratings and temperature ranges for each type.
Detailed electrical characteristics, ordering codes, packaging options and mechanical dimensions are also included. The sheet specifies solderability, insulation resistance and other reliability parameters useful for designers and procurement engineers.
| Package size | 1206 (3216 metric) |
|---|---|
| Dielectric types | COG(NPO), X7R, Y5V |
| Rated voltage options | 16 V, 25 V, 50 V |
| Temperature range | –55 °C to +125 °C (COG, X7R); –30 °C to +85 °C (Y5V) |
| Dissipation factor (tan δ) | < 1.25 × 10⁻³ |
| Insulation resistance at 20 °C | > 10⁴ MΩ |
| Solderability (wetting of pads) | > 95 % |
The arrays are available with COG(NPO), X7R and Y5V dielectric materials.
They can be supplied with rated voltages of 16 V, 25 V, or 50 V.
