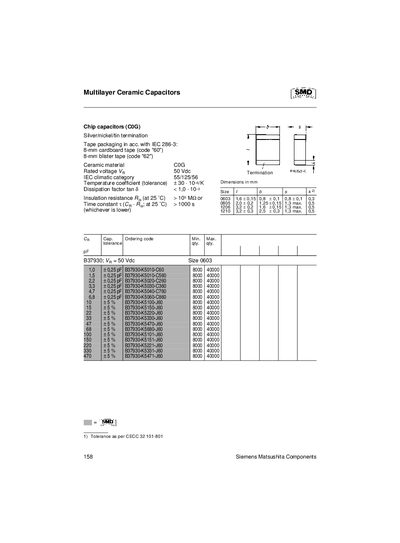

The document describes EPCOS multilayer ceramic chip capacitors (COG) with silver/nickel termination. Packaging follows IEC 286‑3 using 8‑mm cardboard tape (code "60") and 8‑mm blister tape (code "62"). Key electrical parameters include a rated voltage of 50 V, temperature coefficient of +30 – ‑10 ppm/K, and a dissipation factor tan δ below 1.0‑10 %.
A detailed ordering table lists capacitance values from 1 pF to 470 pF, tolerance ranges, and corresponding part numbers. Each entry includes minimum and maximum ordering quantities, facilitating selection and procurement of the appropriate component.
| Rated voltage (Vp) | 50 V |
|---|---|
| Temperature coefficient | +30 – ‑10 ppm/K |
| Dissipation factor (tan δ) | <1.0‑10 % |
| Insulation resistance | >10⁵ MΩ at 25 °C |
| Time constant (t) | >1000 s at 25 °C |
The rated voltage is 50 V.
They are supplied in 8‑mm cardboard tape (code "60") and 8‑mm blister tape (code "62").
The temperature coefficient tolerance is +30 – ‑10 ppm/K.
The insulation resistance is greater than 10⁵ MΩ at 25 °C.
