This document describes the characteristics of E coils and cores, including dimensions, weight, material properties, and saturation current.

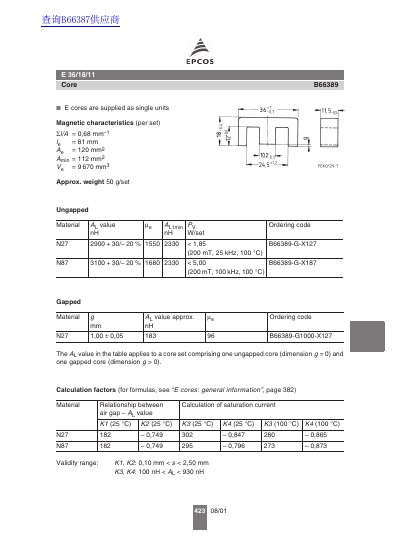

This brochure provides detailed data for the EPCOS E 36/18/11 magnetic core series. It lists magnetic characteristics, core dimensions, material information and the applicable calculation factors for design use.
The document also contains ordering codes, coil former specifications, accessory part numbers and legal notices. All values are given per core set, which includes one ungapped and one gapped core. This manual is written in German.
| Magnetic characteristic Σl/A | 0.68 mm⁻¹ |
|---|---|
| Core volume (Ve) | 9 670 mm³ |
| Approximate weight per set | 50 g/set |
| Coil former material | GFR polyterephthalate (UL 94 V‑0) |
| Maximum operating temperature of coil former | 155 °C |
It is 0.68 mm⁻¹ as listed in the magnetic characteristics table.
The coil former can operate up to 155 °C.
A core set weighs about 50 g.
