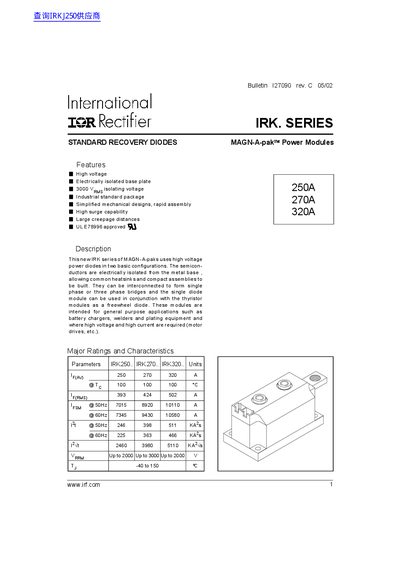

This is the datasheet of IRK series high voltage power diodes. It introduces the features and characteristics of the products.
The IRK series Magn‑a‑pak™ power modules provide high voltage (up to 3000 V isolation) and high surge capability (up to 320 A) in an industrial‑standard package. They feature electrically isolated base plates for compact assemblies and can be used as freewheel diodes in single‑phase or three‑phase bridge configurations.
The bulletin lists extensive electrical ratings (peak reverse voltage, RMS forward current, surge current) and thermal‑mechanical data (junction‑to‑case resistance, operating temperature range, mounting guidelines). Ordering information and mechanical dimensions are also provided for design integration.
| Maximum repetitive peak reverse voltage (IRK250) | 400 V |
|---|---|
| Maximum repetitive peak reverse voltage (IRK270) | 800 V |
| Maximum repetitive peak reverse voltage (IRK320) | 1200 V |
| Maximum RMS forward current (IRK250) | 393 A |
| Isolation voltage (RMS) | 3000 V |
| Operating temperature range | -40 °C to 150 °C |
The IRK320 can handle a non‑repetitive surge current of 10 580 A at an 8.3 ms pulse.
All IRK modules have an RMS isolation voltage rating of 3000 V.
