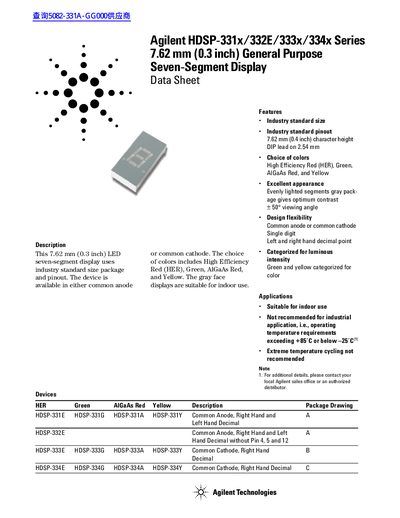

This data sheet provides detailed information on the Agilent HDSP-331x/332E/333x/334x series 7.62 mm (0.3 inch) General Purpose Seven-Segment Display. The device is available in either common anode or common cathode. The colors include High Efficiency Red (HER), Green, AlGaAs Red and Yellow.
The Agilent HDSP‑331x/332E/333x/334x series provides 7.62 mm (0.3 inch) LED seven‑segment displays in common anode or common cathode configurations. Available colors include High Efficiency Red, Green, AlGaAs Red, and Yellow, with a 50° viewing angle and standard DIP packaging.
The datasheet lists mechanical dimensions, pin assignments, absolute maximum ratings, and electrical/optical characteristics such as luminous intensity, forward voltage, and power dissipation. Contact information for Agilent technical support and distributors is also provided.
| Character height | 7.62 mm (0.4 inch) |
|---|---|
| Package lead spacing | 2.54 mm (DIP) |
| Viewing angle | 50° |
| Operating temperature range | -35 °C to +85 °C |
| Luminous intensity per segment (HER) | 1.15 cd |
The series is offered in High Efficiency Red (HER), Green, AlGaAs Red, and Yellow.
The displays provide a 50° viewing angle.
The devices operate from –35 °C to +85 °C.
The displays are supplied in a DIP package with 2.54 mm lead spacing.
