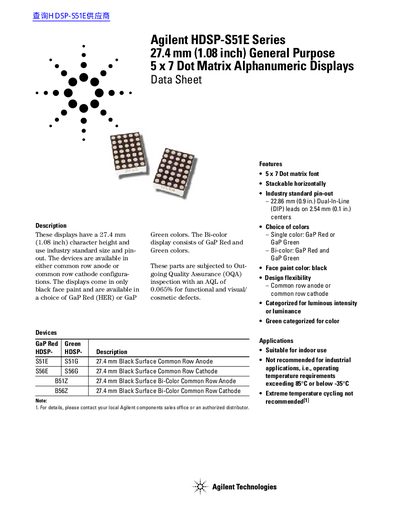

Agilent HDSP-S51E Series 27.4 mm (1.08 inch) General Purpose 5 x 7 Dot Matrix Alphanumeric Displays Data Sheet
The HDSP‑S51E series are 27.4 mm (1.08 in) high, 5×7 dot‑matrix alphanumeric displays offered in single‑color GaP Red, single‑color GaP Green, or bi‑color (Red + Green). They are supplied with a black face paint and can be configured as common‑row anode or common‑row cathode. The devices follow industry‑standard pin‑out with 2.54 mm (0.1 in) spaced DIP leads.
These displays are intended for indoor use and are not recommended for industrial environments that exceed –35 °C to +85 °C. The datasheet provides absolute maximum ratings, package dimensions, internal circuit diagrams, and guidance on soldering, cleaning and reliability.
| Average Power per Dot | 65 mW |
|---|---|
| Peak Forward Current per Dot (Red) | 80 mA |
| Peak Forward Current per Dot (Green) | 100 mA |
| Average Forward Current per Dot | 25 mA |
| Reverse Voltage per Dot | 3 V |
| Operating Temperature Range | -35 °C to +85 °C |
| Lead Solder Temperature (max, 3 s) | 260 °C |
The displays are offered in single‑color GaP Red, single‑color GaP Green, or a bi‑color version that combines Red and Green.
Both common‑row anode and common‑row cathode configurations are available.
The displays are rated for operation between –35 °C and +85 °C.
The devices use a 2.54 mm (0.1 in) center‑to‑center dual‑inline (DIP) lead arrangement.
