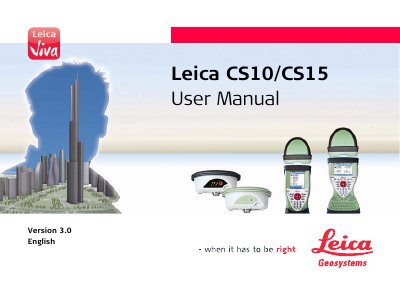

Leica CS10/CS15 User Manual, introducing the features and characteristics of the product, including safety use, product identification, symbols, trademarks
This manual covers the Leica CS10 and CS15 field controllers, detailing safety directions, installation steps, and operating principles. It includes information on hardware components, power functions, battery handling, and data storage.
Technical specifications, warranty terms, and appendices such as pin assignments are also provided, giving users a complete reference for configuring and maintaining the devices.
| Display resolution | VGA (480 x 640 pixels) |
|---|---|
| Keyboard keys (CS15) | 65 keys including 12 function keys |
| Digital camera resolution | 1600 x 1200 pixels, JPEG |
| Dimensions (CS10) | Length 0.200 m, Width 0.102 m, Thickness 0.045 m |
| Weight (CS15, with battery, radio, WLAN) | 0.870 kg (1.918 lb) |
| Power consumption | 2.0 W |
| Nominal voltage | 12 V DC |
| Storage temperature range | -20 °C to +30 °C (-4 °F to 86 °F) |
The batteries should be stored at temperatures between -20 °C and +30 °C (‑4 °F to 86 °F).
The CS15 keyboard has 65 keys, including 12 function keys.
The nominal operating voltage is 12 V DC.
Each unit consumes approximately 2.0 W.
