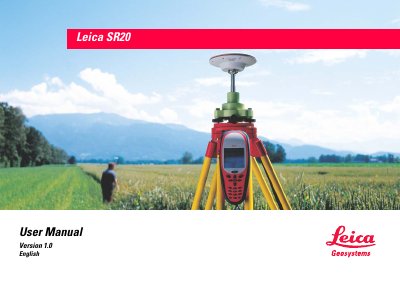

Leica SR20 User Manual

This manual contains important safety directions as well as instructions for setting up the product and operating it.

Brand: Leica
Category: GPS
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 476 KB
Published: 10 May, 2012
Updated: 30 September, 2023
Model: SR20
MD5 checksum: B75FED529AA49A669EA072F00D82E834
PDF: Leica SR20 User Manual PDF

About this manual

This manual introduces the Leica SR20 handheld GPS receiver, covering unpacking, hardware setup, software installation, and safe handling. It includes safety symbols, warranty information, and regulatory statements.

The document also supplies technical specifications, battery information, and guidance for using the Leica Geo Office software with the SR20. It is intended for surveyors and GIS professionals who need accurate positioning data.

What's inside

General Information
Description of the System
Hardware and Software Setup
Care and Transport
Safety Directions
Technical Data

Specifications

Channels	12‑channel L1 code and phase
Battery type	Li‑ion 7.2 V (GEB90)

Frequently asked questions

What is the model number of the GPS receiver?

The model number is SR20.

What type of GPS receiver is the Leica SR20?

It is a 12‑channel L1 code and phase handheld GPS receiver for professional data mapping.
