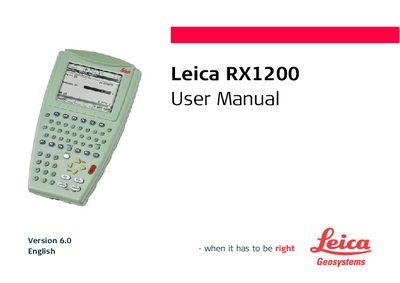

This is a user manual for RX1200, which introduces the product's safety use method, setup method and operation method
This manual covers all essential information for operating the Leica RX1200, including safety directions, equipment setup, user interface navigation, and troubleshooting. It also references related documents such as the System Field Manual and Technical Reference Manual for deeper technical insight.
Technical data sections detail the device dimensions, display characteristics, keyboard layout, angle display formats, and environmental limits such as storage temperature. Appendices list cables, directory structures, and warranty information, helping users maintain and service the equipment correctly.
| Dimensions (RX1210/RX1210T) | Length 0.218 m × Width 0.123 m × Thickness 0.037 m |
|---|---|
| Dimensions (all RX1250 models) | Length 0.218 m × Width 0.123 m × Thickness 0.047 m |
| Display resolution | 1/4 VGA (320 × 240 pixels) |
| Keyboard | 62 keys including 12 function keys |
| Angle display formats | 360°, 360° decimal, 400 gon, 6400 mil, V % |
| Recommended storage temperature | -20 °C to +30 °C (‑4 °F to 86 °F) |
The manual recommends storing the RX1200 at temperatures between -20 °C and +30 °C (‑4 °F to 86 °F).
The RX1200 keyboard has 62 keys, including 12 function keys.
The display resolution is 1/4 VGA, which equals 320 × 240 pixels.
