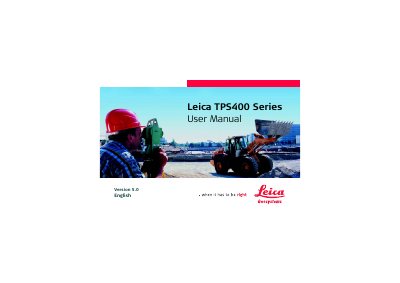

This document is the user manual for the Leica Geosystems Total Station, providing safety directions, setup instructions, and operating guidelines. It also includes information on how to identify the model and serial number.
This manual covers safety directions, product identification, and essential symbols before operating the Leica TPS400 electronic total station. It guides users through unpacking, battery handling, tripod setup, instrument leveling, and configuration of the laser plummet and EDM modes.
Later sections detail the full range of functions, including key operation, program management, EDM settings, data transfer, calibration procedures, and maintenance. Technical specifications, warranty information, and an index are provided at the end of the 162‑page document.
| Telescope magnification | 30x |
|---|---|
| Field of view | 1°30' (1.7 gon) |
| Angle measurement accuracy (standard deviation) | TC(R)403 … 3" (1 mgon) |
| Laser plummet accuracy | 1.5 mm (2 σ) at 1.5 m |
| External power supply voltage range | 11.5 V – 14 V |
When using an external cable, the voltage must be between 11.5 V and 14 V.
The laser plummet deviation is 1.5 mm (2 σ) at a distance of 1.5 m.
