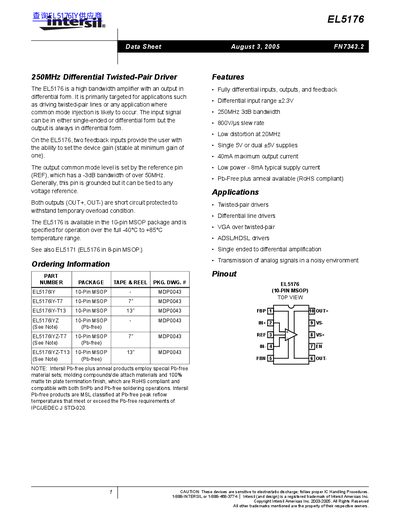

The EL5176 is a high bandwidth amplifier with an output in differential form. It is primarily targeted for applications such as driving twisted-pair lines or any application where common mode injection is likely to occur. The input signal can be in either single-ended or differential form but the output is always in differential form. On the EL5176, two feedback inputs provide the user with the ability to set the device gain (stable at minimum gain of one). The output common mode level is set by the reference pin (REF), which has a -3dB bandwidth of over 50MHz. Generally, this pin is grounded but it can be tied to any voltage reference. Both outputs (OUT+, OUT-) are short circuit protected to withstand temporary overload condition. The EL5176 is available in the 10-pin MSOP package and is specified for operation over the full -40°C to +85°C temperature range. See also EL5171 (EL5176 in 8-pin MSOP.)
The EL5176 is a high‑bandwidth differential driver intended for twisted‑pair lines, VGA over twisted‑pair, ADSL/HDSL drivers, and single‑ended to differential conversion. It offers fully differential inputs and outputs, a selectable gain of at least one, and a REF pin to set the output common‑mode level.
The device is supplied in a 10‑pin MSOP package, operates from –40 °C to +85 °C, and supports a supply range of 4.75 V to 12 V. Key performance figures include a 250 MHz –3 dB bandwidth, 800 V/µs slew rate, 40 mA maximum output current, and typical 8 mA supply current.
| Bandwidth (‑3 dB) | 250 MHz |
|---|---|
| Slew Rate | 800 V/µs |
| Supply Voltage Range | 4.75 V to 12 V |
| Maximum Output Current | 40 mA |
| Typical Supply Current | 8 mA |
| Operating Temperature Range | -40 °C to +85 °C |
| Package | 10‑pin MSOP |
The device can be powered from 4.75 V up to 12 V.
The output common‑mode voltage is set by the REF pin.
The EL5176 can source up to 40 mA of output current.
Typical supply current per channel is about 8 mA.
