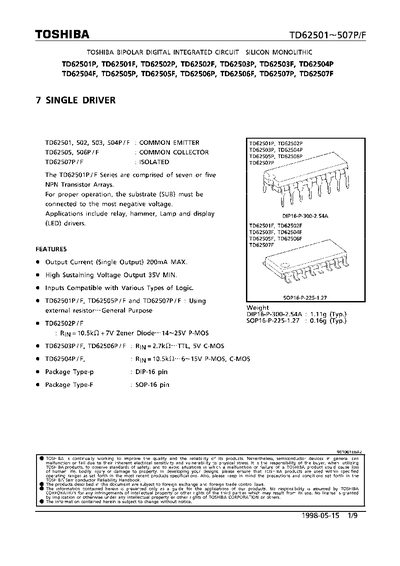

The TD62501~507P/F series consists of bipolar digital integrated circuit driver arrays available in common‑emitter, common‑collector, and isolated configurations. The devices are offered in DIP‑16 (P) and SOP‑16 (F) packages and are intended for applications such as relays, hammers, lamps, and LED drivers.
The datasheet details electrical characteristics, maximum ratings, recommended operating conditions, and test circuits. It also includes pin‑out diagrams, schematic examples for each driver type, and precautions for proper design to avoid damage.
| Output Current (Single Output) | 200 mA MAX |
|---|---|
| Collector‑Emitter Voltage (VcCEO) | 35 V |
| Collector‑Base Voltage (VcCBO) | 50 V |
| Collector Current (Ic) | 200 mA per channel |
| Input Voltage (Vin) | -0.5 V to 45 V |
| Power Dissipation (Pd) | 0.625 W |
| Operating Temperature Range | -40 °C to +85 °C |
| Package Type (P) | DIP‑16 |
| Package Type (F) | SOP‑16 |
| Typical Weight (DIP‑16) | 1.11 g |
| Typical Weight (SOP‑16) | 0.16 g |
Each driver can source up to 200 mA per output.
The devices are rated for operation from –40 °C to +85 °C.
They are offered in a DIP‑16 (P) package and an SOP‑16 (F) package.
The collector‑emitter voltage rating is 35 V.
