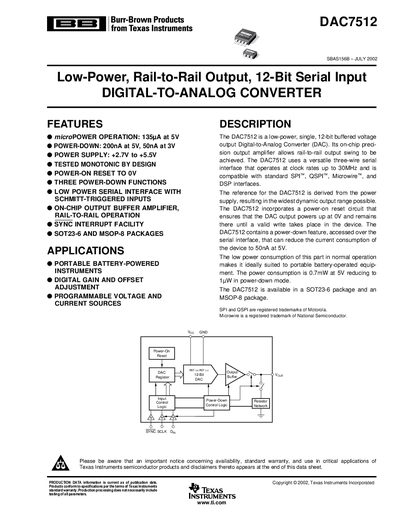

The DAC7512 is a low-power, single, 12-bit buffered voltage output Digital-to-Analog Converter (DAC). Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7512 uses a versatile three-wire serial interface that operates at clock rates up to 30MHz and is compatible with standard SPI™, QSPI™, Microwire™, and DSP interfaces. The reference for the DAC7512 is derived from the power supply, resulting in the widest dynamic output range possible. The DAC7512 incorporates a power-on reset circuit that ensures that the DAC output powers up at 0V and remains there until a valid write takes place in the device. The DAC7512 contains a power-down feature, accessed over the serial interface, that can reduce the current consumption of the device to 50nA at 5V. The low power consumption of this part in normal operation makes it ideally suited to portable battery-operated equipment. The power consumption is 0.7mW at 5V reducing to 1µW in power-down mode. The DAC7512 is available in a SOT23-6 package and an MSOP-8 package.
The DAC7512 is a low‑power, 12‑bit buffered voltage‑output digital‑to‑analog converter with rail‑to‑rail operation. It supports standard SPI, QSPI™, and Microwire™ serial interfaces up to 30 MHz and offers multiple power‑down modes for ultra‑low standby current.
Key features include a supply range of +2.7 V to +5.5 V, power‑down current as low as 200 nA at 5 V, and selectable SOT23‑6 or MSOP‑8 packages. The datasheet details absolute maximum ratings, pin configurations, electrical and timing characteristics, and typical performance graphs.
| Resolution | 12 bits |
|---|---|
| Supply Voltage | +2.7 V to +5.5 V |
| Power‑down Current (5 V) | 200 nA |
| Output Voltage Range | 0 V to Vop |
| Maximum Clock Rate | 30 MHz |
The DAC7512 draws 200 nA in power‑down mode when powered at 5 V.
The DAC7512 operates from a supply voltage of +2.7 V to +5.5 V.
The converter provides a 12‑bit resolution.
