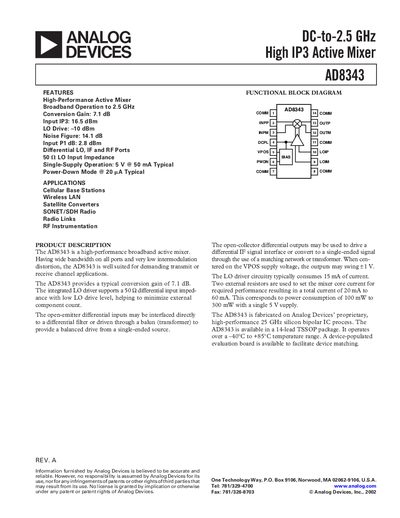

The AD8343 is a high-performance broadband active mixer with wide bandwidth on all ports and very low intermodulation distortion, making it ideal for demanding transmit or receive channel applications.
The AD8343 active mixer provides broadband operation up to 2.5 GHz, a typical conversion gain of 7.1 dB, and low intermodulation distortion. It features differential LO, IF, and RF ports, single‑supply operation at 5 V, and a power‑down mode drawing only 20 nA.
The device is supplied in a 14‑lead TSSOP package, operates from –40 °C to +85 °C, and is intended for applications such as cellular base stations, wireless LAN, satellite converters, and RF instrumentation.
| Conversion Gain | 7.1 dB |
|---|---|
| Input IP3 | 16.5 dBm |
| Noise Figure | 14.1 dB |
| Operating Temperature | -40 °C to +85 °C |
| Package | 14‑lead TSSOP |
The AD8343 provides a typical conversion gain of 7.1 dB.
The input IP3 is specified as 16.5 dBm.
The AD8343 has a noise figure of 14.1 dB.
