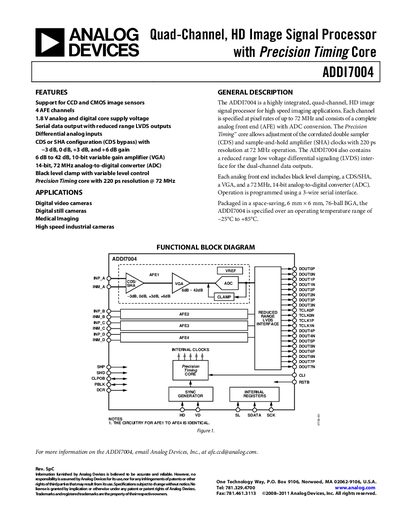

The ADDI7004 is a highly integrated, quad-channel, HD image signal processor for high speed imaging applications. It supports CCD and CMOS image sensors, has 4 AFE channels, 1.8V analog and digital core supply voltage, serial data output, LVDS outputs, differential analog inputs, CDS or SHA configuration, 6dB to 42dB variable gain amplifier, 14-bit 72MHz analog-to-digital converter, and more.
The ADDI7004 is a highly integrated, quad‑channel HD image signal processor designed for high‑speed imaging applications such as digital video cameras, still cameras, medical imaging, and industrial cameras. Each channel supports CCD and CMOS image sensors, includes a full analog front end with black‑level clamping, CDS/SHA, a variable‑gain amplifier, and a 14‑bit, 72 MHz ADC.
Operation is controlled via a 3‑wire serial interface and the device offers a reduced‑range LVDS output for dual‑channel data. The Precision Timing core provides 220 ps resolution for timing adjustments, and the part is packaged in a 6 mm × 6 mm, 76‑ball BGA suitable for compact designs.
| Channels | 4 (quad‑channel) |
|---|---|
| Pixel rate per channel | up to 72 MHz |
| ADC resolution | 14‑bit |
| ADC sampling frequency | 72 MHz |
| Gain steps | -3 dB, 0 dB, +3 dB, +6 dB |
| Core supply voltage | 1.8 V |
| Serial interface | Reduced‑range LVDS |
| Package | 6 mm × 6 mm, 76‑ball BGA |
| Operating temperature range | -25 °C to +85 °C |
| AFE channels | 4 |
| Input type | Differential analog |
| Black level clamp | Variable level control |
| Timing core resolution | 220 ps |
It supports both CCD and CMOS image sensors.
Operation is programmed using a 3‑wire serial interface.
The device is packaged in a 6 mm × 6 mm, 76‑ball BGA.
It operates from –25 °C to +85 °C.
