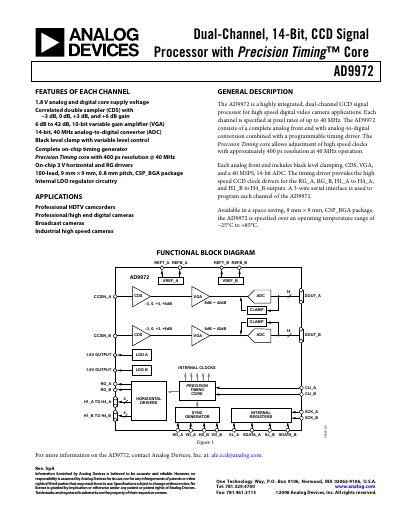

The AD9972 is a highly integrated, dual-channel CCD signal processor for high speed digital video camera applications. It features a 1.8V analog and digital core supply voltage, correlated double sampler (CDS), variable gain amplifier (VGA) with 6dB to 42dB gain, 14-bit 40MHz analog-to-digital converter (ADC), black level clamp, and more.
The AD9972 from Analog Devices is a highly integrated dual‑channel CCD signal processor designed for high‑speed digital video camera applications. Each channel features a 1.8 V analog and digital core supply, correlated double sampler with selectable gain, a 10‑bit variable gain amplifier, a 14‑bit 40 MHz ADC, black‑level clamp, and a precision timing core with 400 ps resolution.
The device includes on‑chip 3 V horizontal and RG drivers, a 3‑wire serial interface for programming, and is offered in a compact 9 mm × 9 mm CSP‑BGA package. It operates from –25 °C to +85 °C and is targeted at professional HDTV camcorders, high‑end digital cameras, broadcast cameras, and industrial high‑speed cameras.
| Core supply voltage | 1.8 V analog and digital |
|---|---|
| CDS gain options | -3 dB, 0 dB, +3 dB, +6 dB |
| Variable gain amplifier (VGA) range | 6 dB to 42 dB, 10‑bit |
| ADC resolution and speed | 14‑bit, 40 MHz |
| Precision timing resolution | 400 ps at 40 MHz |
| Package | 100‑lead, 9 mm × 9 mm, 0.8 mm pitch CSP_BGA |
| Operating temperature range | ‑25 °C to +85 °C |
| Programming interface | 3‑wire serial interface |
The AD9972 uses a 1.8 V analog and digital core supply voltage.
It includes a 14‑bit analog‑to‑digital converter operating at 40 MHz.
It is designed for professional HDTV camcorders, high‑end digital cameras, broadcast cameras, and industrial high‑speed cameras.
The device is programmed via a 3‑wire serial interface.
