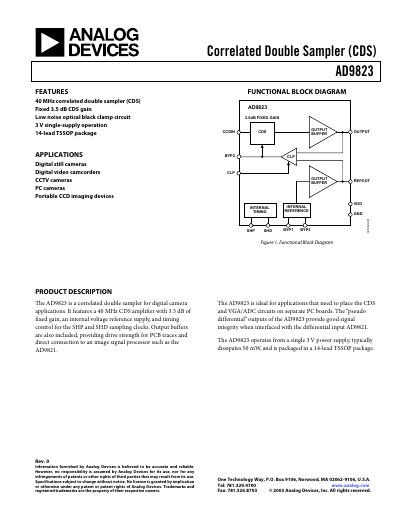

AD9823 is a correlated double sampler (CDS) supporting 40MHz sampling frequency, fixed gain of 3.5dB, internal voltage reference supply, supporting SHP and SHD sampling clocks.
The AD9823 is a correlated double sampler designed for digital camera applications. It features a 40 MHz CDS amplifier with a fixed 3.5 dB gain, operates from a single 3 V supply, and includes internal reference and timing control for SHP and SHD sampling clocks. Output buffers provide drive strength for PCB traces and direct connection to image signal processors such as the AD9821.
The datasheet provides comprehensive specifications, including general, analog, digital, and timing parameters, absolute maximum ratings, thermal characteristics, pin configurations, and ordering information for the 14‑lead TSSOP (RU‑14) package.
| Operating Temperature Range | -25 °C to +85 °C |
|---|---|
| Storage Temperature Range | -65 °C to +150 °C |
| Power Supply Voltage | 2.7 V – 3.6 V |
| Maximum Clock Rate | 40 MHz |
| Minimum Clock Rate | 5 MHz |
| Input Referred Noise | 100 µV rms |
| High Level Input Voltage (VIH) | 2.1 V |
| Low Level Input Voltage (VIL) | 0.6 V |
| Package | 14‑lead TSSOP (RU‑14) |
The AD9823 operates from a single 3 V supply, with a recommended range of 2.7 V to 3.6 V.
The device supports a maximum clock rate of 40 MHz.
VDD must stay between –0.3 V and 3.9 V relative to GND.
It is offered in a 14‑lead TSSOP (RU‑14) package.
