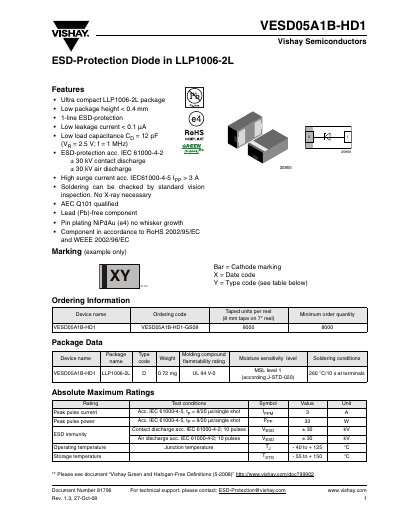

VESD05A1B-HD1 is a Vishay Semiconductors ESD protection diode with features including ultra compact LLP1006-2L package, low package height, 1-line ESD-protection, low leakage current, low load capacitance, high surge current, AEC Q101 qualification, lead (Pb)-free component, NiPdAu (e4) pin plating, no whisker growth, and compliance with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
The VESD05A1B‑HD1 is an ultra‑compact ESD‑protection diode in an LLP1006‑2L package. It offers low leakage (< 0.1 µA), low load capacitance (12 pF), and a single‑line protection design suitable for high‑speed data lines.
The datasheet lists key electrical characteristics such as a 5 V reverse stand‑off voltage, 3 A peak pulse current, and clamping voltages of 8.9‑11 V (reverse) and 0.95‑1.2 V (forward). Package dimensions, ordering codes, and environmental compliance (RoHS, ODS policy) are also included.
