The UCE Series is a 100W isolated, high-density eighth-brick DC/DC converters produced by Murata. The converter has a 36 to 75 Vdc input range (48V nominal) and outputs from 1.5V to 12V, with a power of up to 100W.
The UCE Series are isolated, high‑density, eighth‑brick DC/DC converters offering up to 100 W output power with a wide output voltage range. They feature low profile dimensions, high efficiency and extensive protection functions suitable for industrial applications.

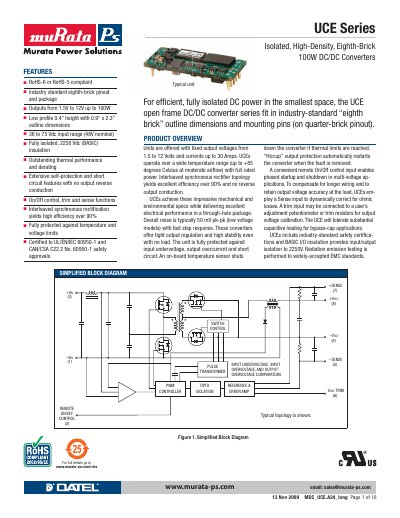

The handbook details performance specifications, mechanical data, input and output characteristics, isolation ratings, wiring guidelines, soldering recommendations and application notes to aid designers in integrating the converters into their systems.
| Output voltage range | 1.5 V to 12 V |
|---|---|
| Input voltage range | 36 V to 75 V (48 V nominal) |
| Maximum output power | 100 W |
| Isolation rating | 2250 Vdc |
| Weight (UCE‑1.5/20‑D48) | 0.67 oz (19 g) |
The converters accept a continuous input voltage from 36 V to 75 V (48 V nominal).
Each converter can provide up to 100 W of output power.
They include extensive self‑protection, short‑circuit protection, input undervoltage shutdown, over‑current and over‑voltage protection, and thermal shutdown.
The devices are fully isolated with a basic insulation rating of 2250 Vdc.
