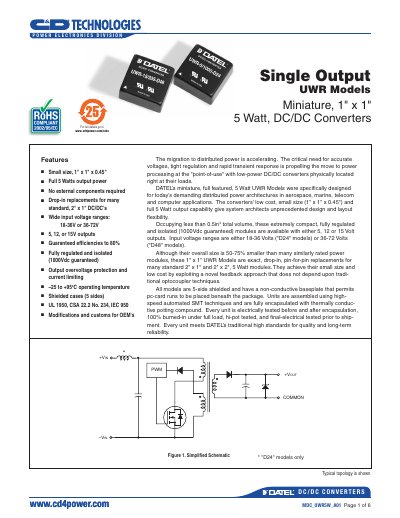

DATEL's miniature, full featured, 5 Watt UWR Models were specifically designed for today’s demanding distributed power architectures in aerospace, marine, telecom and computer applications.
The D24 UWR converters are designed for distributed power architectures in aerospace, marine, telecom and computer applications. Their 1" × 1" × 0.45" footprint and 5 W output provide flexible placement at the point‑of‑use, while the 1000 Vdc isolation and selectable output voltages (5 V, 12 V, 15 V) meet demanding system requirements.
The datasheet lists electrical characteristics such as 18‑36 V input range, ≥75 % efficiency, 170 kHz switching frequency and operation from –25 °C to +95 °C. Mechanical dimensions, performance curves, EMC test results and ordering information are also provided for designers.
| Input Voltage Range (D24) | 18 V–36 V |
|---|---|
| Output Voltage Options | 5 V, 12 V, 15 V |
| Isolation Voltage | 1000 Vdc |
| Efficiency (typical) | ≥75 % |
| Switching Frequency | 170 kHz ±10 kHz |
| Physical Dimensions | 1" × 1" × 0.45" |
The D24 model operates from 18 V to 36 V input.
They are offered with 5 V, 12 V, or 15 V outputs.
They provide 1000 Vdc isolation between input and output.
No external input or output capacitors are required; internal filtering meets ripple specifications.
