This document introduces the characteristics and specifications of the EMI suppression filter (EMIFILr) for AC power lines manufactured by Murata.

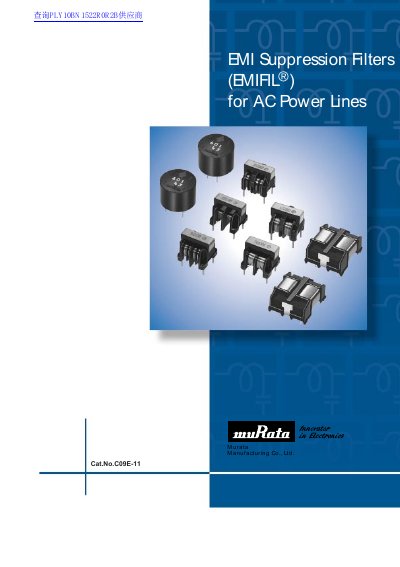

The catalog provides an overview of Murata's EMIFILr EMI suppression filters designed for AC power lines. It describes the filter structure, common‑mode choke types, and the various product series offered.
Detailed tables give typical specifications such as rated current, inductance, insulation resistance and operating temperature ranges for the FKOB, PLA10, PLH10, PLY10 and PLY17 series. Safety and handling cautions are also included. This manual is written in Chinese.
| Operating Temperature Range (FKOB series) | -20 °C to 95 °C |
|---|---|
| Rated Current (FKOB160MH02) | 2.5 A |
| Common Mode Inductance (FKOB160MH02) | 250 µH |
| Insulation Resistance (FKOB160MH02) | 100 MΩ |
| Operating Temperature Range (PLA10 series) | -25 °C to 120 °C |
| Common Mode Inductance (PLA10AN1522R0R2) | 1.5 mH |
The FKOB series can be used from –20 °C up to 95 °C ambient temperature.
Murata provides a standard type and a high‑frequency type of common‑mode choke.
