Murata KMP_2400C_B02 is a surface mount inductor produced by Murata. The inductor has a range of 2.7μH to 220μH and features high saturation current and small size.

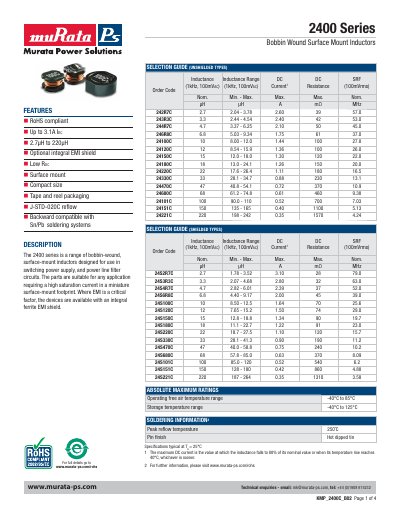

The document describes the Murata 2400 Series as a range of bobbin-wound, surface-mount inductors designed for use in switching power supply and power line filter circuits. These parts are suitable for applications requiring high saturation current in a miniature footprint and are available with an optional integral ferrite EMI shield.
The datasheet provides selection guides for both unshielded and shielded types, listing order codes, inductance ranges, DC current ratings, DC resistance, and self-resonant frequencies. It also includes absolute maximum ratings, soldering information, mechanical dimensions, and tape & reel specifications.
| Inductance Range | 2.7μH to 220μH |
|---|---|
| Maximum DC Current | Up to 3.1A |
| Operating Free Air Temperature Range | -40°C to 85°C |
| Storage Temperature Range | -40°C to 125°C |
| Package Weight (Unshielded) | 0.43g Typ. |
| Package Weight (Shielded) | 0.72g Typ. |
The parts are suitable for applications requiring up to 3.1A of DC current.
Yes, the devices are available with an optional integral ferrite EMI shield where EMI is a critical factor.
The specified peak reflow temperature is 250°C.
