KMP_1000C_B02 is a pulse transformer from Murata. The transformer features RoHS compliance, UL 94V-0 package material, isolation voltage of 4kVrms, and small size.

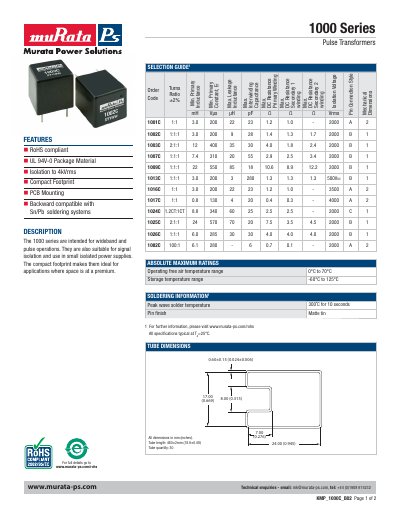

This document serves as a selection guide for the Murata Power Solutions 1000 Series Pulse Transformers. It provides technical data including order codes, turns ratios, primary and secondary inductances, leakage inductance, interwinding capacitance, DC resistance, and isolation voltage ratings.
The datasheet also details absolute maximum operating temperatures, soldering information for lead-free and Sn/Pb systems, mechanical dimensions, pin connection styles, and technical notes regarding high-voltage isolation testing.
| Operating free air temperature range | 0°C to 70°C |
|---|---|
| Storage temperature range | -60°C to 125°C |
| Peak wave solder temperature | 300˚C for 10 seconds |
Input and output should normally be maintained within SELV limits, i.e., less than 42.4V peak or 60VDC.
These transformers are designed for wideband and pulse operations, as well as signal isolation and use in small isolated power supplies.
The transformers can operate in a free air temperature range from 0°C to 70°C.
The pins can withstand a peak wave solder temperature of 300˚C for 10 seconds.
