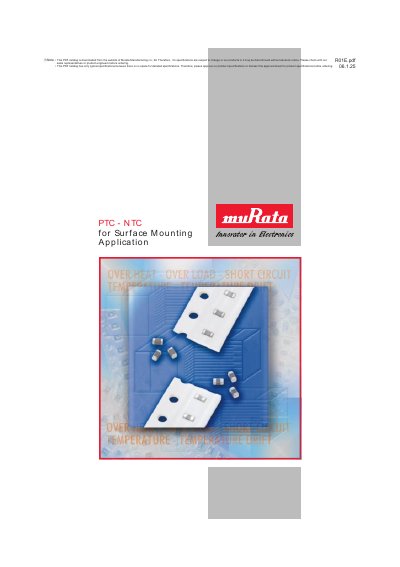

This PDF catalog is a list of PTC - NTC models produced by Murata Manufacturing co., ltd. It contains the characteristics of products, such as resistance, temperature, maximum voltage, and operating temperature.
This document is a product catalog from Murata Manufacturing Co., Ltd. detailing their PTC (Positive Temperature Coefficient) and NTC (Negative Temperature Coefficient) chip thermistor products designed for surface mounting applications.
The catalog covers the PRF series for overheat sensing in components like Hybrid ICs and power transistors, the PRG series for overcurrent prevention acting as temperature fuses, and the NCP series for current limitation. It provides typical specifications, circuit examples, dimensions, and application markets.
| Product Type | PTC/NTC Chip POSISTORr / Chip Resistor |
|---|---|
| Package Style | Surface Mounting |
They detect overheating of Hybrid ICs, Power Transistors, and other power components.
They are noise-free, free from contact problems, and low price.
They are used for overcurrent prevention and act as temperature fuses in power supplies, car audio, and lighting.
