MPS has launched a series of 5 watt power BWR modules for aerospace, marine, telecom and computer applications. These modules are compact, full-featured, 5 watt output power, and low cost, which can provide system architects with unprecedented design and layout flexibility.
The BWR family provides compact, fully regulated and isolated DC/DC converters (1" x 1" x 0.45") delivering up to 5 W of power. They are offered with standard output voltages of ±5 V, ±12 V or ±15 V and input voltage ranges of 18‑36 V for D24 models or 36‑72 V for D48 models. All devices are 5‑sided shielded, meet UL1950, CSA 22.2 and IEC950 standards, and feature 1000 Vdc isolation.

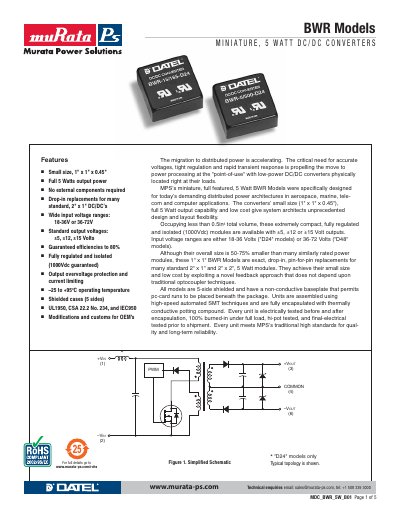

Typical performance includes efficiencies up to 80 %, a switching frequency of 170 kHz (±10 kHz), and operation from –25 °C to +95 °C (derated). No external components are required for basic operation, though optional input/output filtering can be added for lower ripple and noise. The datasheet also provides pin assignments, mechanical dimensions, and ordering information.
| Output Power | 5 W |
|---|---|
| Input Voltage Range (D24) | 18‑36 V |
| Input Voltage Range (D48) | 36‑72 V |
| Isolation Voltage | 1000 Vdc (minimum) |
| Switching Frequency | 170 kHz ±10 kHz |
| Physical Dimensions | 1" x 1" x 0.45" (25.4 x 25.4 x 11.4 mm) |
| Weight | 0.7 oz (20 g) |
D24 models accept 18‑36 V, while D48 models accept 36‑72 V.
All BWR models are isolated with a minimum rating of 1000 Vdc.
