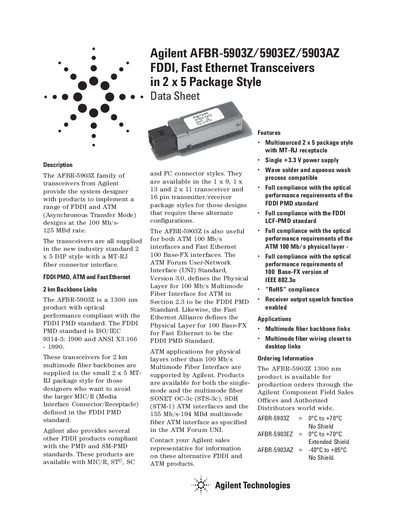

This document describes the features and characteristics of Agilent AFBR-5903Z/5903EZ/5903AZ FDDI, Fast Ethernet Transceivers in 2 x 5 Package Style, including multisourced 2 x 5 package style, single +3.3 V power supply, compatibility with wave solder and aqueous wash processes, compliance with FDDI PMD standard and ATM 100 Mb/s physical layer requirements, etc.
The AFBR-5903Z series provides 1300 nm optical transceivers in a 2 × 5 DIP package with an MT‑RJ fiber connector. They are intended for 2 km multimode fiber backbones and support FDDI, ATM 100 Mb/s and Fast Ethernet 100 Base‑FX interfaces.
The transceivers feature a single +3.3 V supply, RoHS compliance, receiver output squelch, and full compliance with the FDDI PMD, LCF‑PMD, ATM and IEEE 802.3u standards. Detailed pin‑out, package dimensions, handling precautions and board‑layout recommendations are included.
| Optical wavelength | 1300 nm |
|---|---|
| Package style | 2 × 5 DIP with MT‑RJ connector |
| Power supply voltage | +3.3 V |
| Operating temperature (AFBR-5903Z) | 0 °C to +70 °C |
| Operating temperature (AFBR-5903AZ) | -40 °C to +85 °C |
| RoHS compliance | Yes |
| Receiver output squelch | Enabled |
They are supplied in a 2 × 5 DIP package with an MT‑RJ fiber connector.
The AFBR-5903AZ operates from –40 °C to +85 °C.
A single +3.3 V supply powers both the transmitter and receiver sections.
