AD5241/AD5242 are I2C-compatible 256-position digital potentiometers with options for 10 kΩ, 100 kΩ, and 1 MΩ resistance values. They have a low temperature coefficient and an internal power on midscale preset feature. They can be powered by a single supply of 2.7 V to 5.5 V or a dual supply of ±2.7 V for AC or bipolar operation. They feature an I2C-compatible interface with readback capability, extra programmable logic outputs, self-contained shutdown feature, and an extended temperature range of -40°C to +105°C. They are suitable for applications in multimedia, video, audio, communications, mechanical potentiometer replacement, instrumentation for gain and offset adjustment, programmable voltage-to-current conversion, and line impedance matching.
The AD5241 and AD5242 are 256‑position, I²C‑compatible digital potentiometers offering single‑ or dual‑channel operation. They provide programmable resistance values, extra logic outputs, and a self‑contained shutdown feature, suitable for multimedia, communications, instrumentation, and voltage‑to‑current conversion applications.

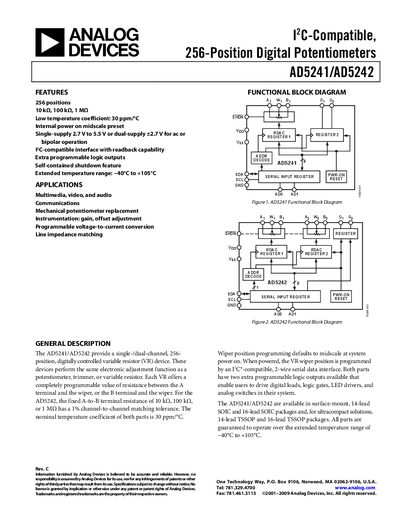

The handbook includes detailed specifications such as 8‑bit resolution, 30 ppm/°C temperature coefficient, supply ranges of 2.7 V–5.5 V, and operating temperatures from –40 °C to +105 °C. It also contains functional block diagrams, pin descriptions, timing diagrams, and typical performance curves for various package options.
| Resolution | 8 Bits |
|---|---|
| Supply Voltage Range | 2.7 V to 5.5 V (single‑supply) or +2.7 V (dual‑supply) |
| Operating Temperature Range | –40 °C to +105 °C |
The devices provide 256 programmable positions.
They operate from 2.7 V to 5.5 V with a single‑supply or from +2.7 V with a dual‑supply configuration.
