This document contains packaging information and orderable device status for supplier 74365. The document lists detailed information about different models of the product, including package type, number of pins, package quantity, etc.

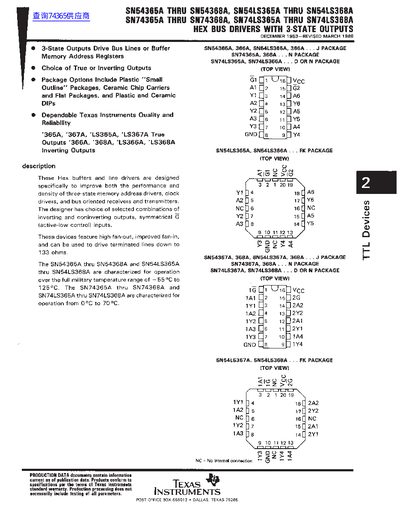

The SN54365A is a hex bus driver with three‑state outputs designed for memory address lines, clock drivers and bus‑oriented receivers. It offers both true and inverting output configurations and is intended to improve performance and density of three‑state bus systems.
The device is supplied in multiple packages (J, N, FK) and operates over a wide temperature range. Key electrical characteristics such as supply voltage, input thresholds, output currents and switching times are detailed in the datasheet, along with mechanical dimensions and warranty information.
| High‑level output current (IOH) | -2 mA – 5.2 mA |
|---|
