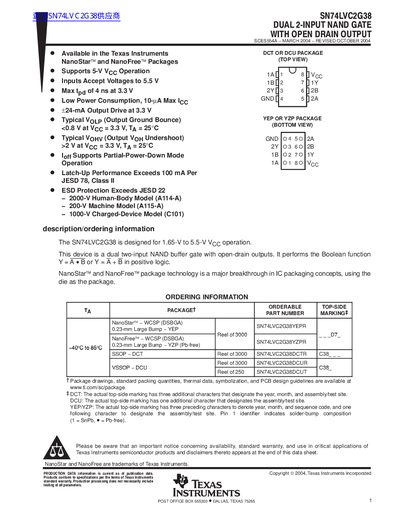

This datasheet provides detailed information on the SN74LVC2G38, including its features, specifications, and ordering information.
The SN74LVC2G38 is a dual two‑input NAND gate with open‑drain outputs that performs the Boolean function Y = A + B in positive logic. It is available in NanoStar™ and NanoFree™ package technologies and supports partial‑power‑down mode to prevent back‑flow current when powered down.
The datasheet provides detailed electrical characteristics, absolute maximum ratings, recommended operating conditions, switching performance, mechanical dimensions for DCT and DCU packages, and ordering information. It also includes ESD protection specifications and an important notice regarding product availability and warranty.
| Supply voltage range | 1.65 V to 5.5 V |
|---|---|
| Output drive current (3.3 V) | +24 mA |
| Low‑power consumption | 10 µA max |
| ESD protection (Human‑Body Model) | 2000 V |
| Operating temperature range | -40 °C to 85 °C |
It operates from 1.65 V up to 5.5 V.
The device can source up to +24 mA at a 3.3 V supply.
Yes, it includes a partial‑power‑down mode that disables the outputs when the device is powered down.
The device exceeds 2000 V HBM, 200 V MM, and 1000 V CDM protection levels.
