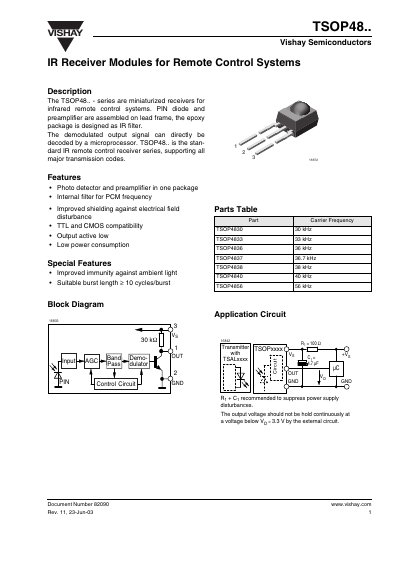

TSOP48.. is the standard IR remote control receiver series, supporting all major transmission codes.
The TSOP48.. series are miniaturized infrared receiver modules that integrate a PIN photodiode and preamplifier in a single package with an internal IR filter. They output an active‑low TTL signal compatible with both TTL and CMOS logic and are designed for low power consumption.
The document lists absolute maximum ratings, electrical and optical characteristics, typical performance curves, recommended data formats, and package dimensions. It also includes a policy statement on ozone‑depleting substances.
| Supply Voltage (Pin 3) | 0.3 to +6.0 V |
|---|---|
| Supply Current (Pin 3) | 5 mA |
| Output Voltage (Pin 1) | 0.3 to +6.0 V |
| Power Consumption (Tamb ≤ 85 °C) | 50 mW |
| Operating Temperature Range | -25 °C to +85 °C |
| Carrier Frequency (example) | 30 kHz (TSOP4830) |
| Minimum Burst Length | ≥ 10 cycles/burst |
The module operates with a supply voltage between 0.3 V and 6.0 V on Pin 3.
Typical power consumption is 50 mW at an ambient temperature of up to 85 °C.
Supported carrier frequencies include 30 kHz (TSOP4830), 33 kHz (TSOP4833), 36 kHz (TSOP4836), 36.7 kHz (TSOP4837), 38 kHz (TSOP4838), 40 kHz (TSOP4840) and 56 kHz (TSOP4856).
A burst length of at least 10 cycles per burst is required.
