AT76C111 is a low-power digital camera control chip that integrates DSP and video encoder, supports SDRAM and various storage cards, and can be widely used in consumer digital cameras, portable digital camcorders, industrial vision systems, etc.

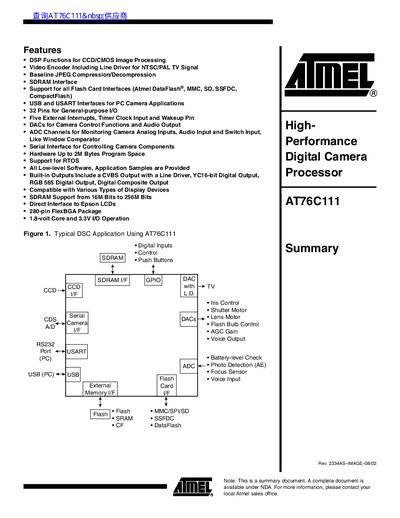

The AT76C111 is a highly‑integrated microcontroller designed for digital camera applications. It combines image acquisition, processing, storage, display and camera management functions, and is built around an ARM® core that handles the heavy‑weight DSP and JPEG tasks in hardware.
Key features include multiple flash‑card interfaces, USB and USART connectivity, up to 2 MB of external Flash for program space, optional 2 MB SRAM, SDRAM support from 16 M‑bit to 256 M‑bit, and low power consumption modes. The device supports CCD or CMOS sensors up to 16 MP and provides video encoding for NTSC/PAL output.
| Core voltage | 1.8 V |
|---|---|
| I/O voltage | 3.3 V |
| Program memory | 2 MB external Flash ROM |
| External SRAM (optional) | 2 MB |
| SDRAM interface | 16 M‑bit to 256 M‑bit |
| Active current consumption | 60‑100 mA |
| Standby current | 1‑5 mA |
| Sleep current | 50 µA |
It supports CCD or CMOS imagers up to 16 megapixels, using Bayer‑pattern RGB color arrangements.
The device offers USB and USART interfaces, multiple flash‑card interfaces (DataFlash, MMC, SD, SSFDC, CompactFlash), SDRAM, and serial ports for camera component control.
Typical active current is 60‑100 mA, standby draws 1‑5 mA, and sleep mode consumes about 50 µA.
