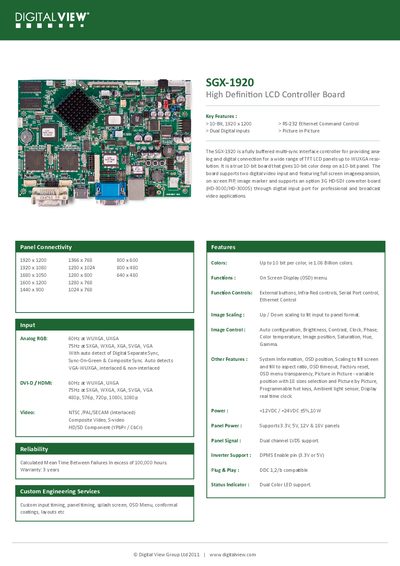

The SGX-1920 is a Digital View Group Ltd product, a high definition LCD controller board that supports VGA, DVI-D and HDMI, has a resolution of 10-Bit, 1920 x 1200 and supports RS-232 Ethernet command control, dual digital inputs and picture in picture.
The SGX-1920 is a fully buffered multi‑sync LCD controller board designed for a wide range of TFT panels up to WUXGA resolution. It provides dual digital video inputs, RS‑232/Ethernet command control, picture‑in‑picture, and optional 3G HD‑SDI conversion for professional broadcast applications. The board supports 10‑bit color (1.06 billion colors) and offers extensive on‑screen display (OSD) functions, scaling, image adjustments and programmable hot keys.
Key specifications include support for analog RGB and digital DVI‑D/HDMI inputs at various frequencies, power options of +12 VDC or +24 VDC (up to 10 W), panel power compatibility with 3.3 V, 5 V, 12 V and 18 V panels, dual‑channel LVDS output, DPMS inverter control, and a mean time between failures exceeding 100 000 hours. The unit comes with a three‑year warranty and optional accessories such as HD‑SDI adaptor boards and OSD button kits.
| Resolution / Color Depth | 10‑bit, 1920 × 1200 |
|---|---|
| Video Inputs | Dual digital inputs (DVI‑D/HDMI) and analog RGB |
| Power Consumption | +12VDC / +24VDC, 10 W |
| Panel Power Compatibility | 3.3 V, 5 V, 12 V & 18 V |
| Mean Time Between Failures | > 100,000 hours |
| Warranty | 3 years |
The board can be powered from either +12 VDC or +24 VDC and draws up to 10 W.
The controller board is covered by a three‑year warranty.
Its calculated mean time between failures exceeds 100,000 hours.
