This document describes the technical parameters of the 3G HD-SDI converter board produced by Digital View Group Ltd 2010, including panel connectivity, color, function, image scaling, image control, other features, power requirements, panel power, panel signal, inverter support, plug and play, input, auto detection.

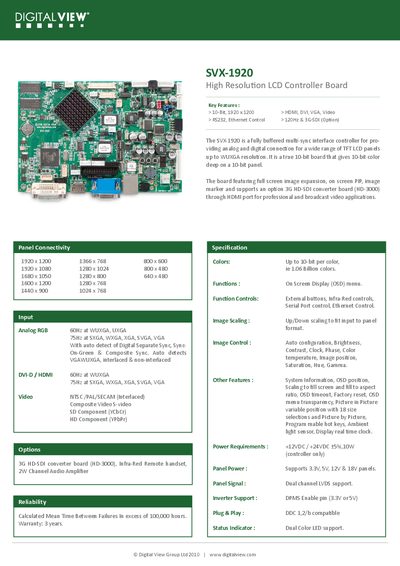

The SVX-1920 is a fully buffered multi‑sync LCD controller board designed for professional and broadcast video applications. It provides analog and digital connections for a wide range of TFT LCD panels up to WUXGA resolution and offers 10‑bit colour depth (up to 1.06 billion colours). Key interfaces include HDMI, DVI, VGA, video and an optional 3G‑HD‑SDI converter board.
The board features RS‑232 and Ethernet control, on‑screen display menu, picture‑in‑picture, and various image scaling functions. Power options support +12 VDC / +24 VDC (10 W) and panels of 3.3 V, 5 V, 12 V or 18 V. Reliability is rated with an MTBF over 100 000 hours and a three‑year warranty.
| Maximum resolution | 1920 x 1200 (WUXGA) |
|---|---|
| Colour depth | 10‑bit per colour (≈1.06 billion colours) |
| Video interfaces | HDMI, DVI, VGA, Video, optional 3G‑HD‑SDI |
| Control interfaces | RS232, Ethernet |
| Power input | +12VDC / +24VDC, 10 W (controller only) |
| Supported panel voltages | 3.3 V, 5 V, 12 V & 18 V |
| Mean Time Between Failures | >100,000 hours |
| Warranty | 3 years |
| Refresh rates | 60 Hz at WUXGA/UXGA, 75 Hz at lower resolutions |
| Optional high‑speed output | 120 Hz & 3G‑SDI (Option) |
It supports up to 1920 × 1200 (WUXGA) at 60 Hz and lower resolutions such as SXGA, WXGA, XGA, SVGA and VGA at 75 Hz.
The board can be controlled via an RS‑232 serial port or over Ethernet.
Yes, an optional 3G‑HD‑SDI converter board (HD‑3000) can be added through the HDMI port.
The board has a calculated MTBF of over 100 000 hours and comes with a three‑year warranty.
