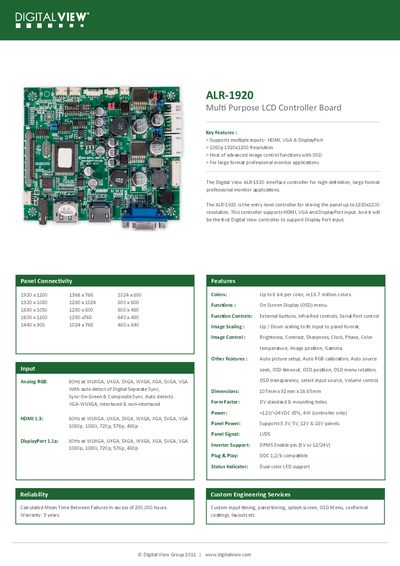

The Digital View ALR-1920 interface controller is for high-definition, large format professional monitor applications. It supports HDMI, VGA and DisplayPort input, with a resolution of up to 1920x1200. It is the first Digital View controller to support Display Port input.
The ALR-1920 controller board is designed for large‑format professional monitor applications. It accepts HDMI, VGA and DisplayPort signals and can output up to 1920 × 1200 (1080p) resolution. The board includes an on‑screen display (OSD) menu with image‑control functions such as brightness, contrast, sharpness, color temperature and scaling.
Physical dimensions are 107 mm × 92 mm × 16.65 mm and it follows the DV standard form factor with mounting holes. Power is supplied via +12 V or +24 V DC (45 % efficiency, 4 W) and it supports panel power of 3.3 V, 5 V, 12 V and 18 V with an LVDS panel signal. Reliability is rated at over 200,000 hours MTBF and the product carries a three‑year warranty.
| Maximum Resolution | 1920 × 1200 (1080p) |
|---|---|
| Supported Input Interfaces | HDMI, VGA, DisplayPort |
| Color Depth | 8 bit per color (16.7 million colors) |
| Power Supply (Controller) | +12 V / +24 V DC, 4 W |
| Panel Power Compatibility | 3.3 V, 5 V, 12 V, 18 V |
| Panel Signal Type | LVDS |
| Dimensions | 107 mm × 92 mm × 16.65 mm |
| Form Factor | DV standard with mounting holes |
| Warranty | 3 years |
| Mean Time Between Failures (MTBF) | >200,000 hours |
It supports HDMI, VGA and DisplayPort inputs.
The controller can output up to 1920 × 1200 (1080p) resolution.
Yes, it provides an OSD menu for image‑control functions.
