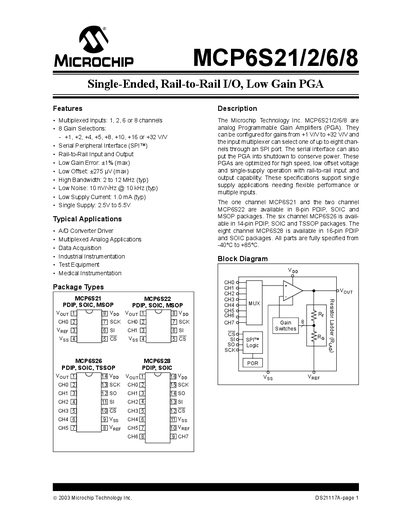

This datasheet introduces the features and characteristics of Microchip Technology Inc. MCP6S21/2/6/8 analog programmable gain amplifiers (PGAs).
The MCP6S21/2/6/8 family are single‑ended, rail‑to‑rail input/output programmable gain amplifiers with selectable gains from +1 V/V to +32 V/V. They support multiplexed inputs (1, 2, 6 or 8 channels), SPI control, low gain error (±1 % max) and low offset voltage (±275 µV max). The devices are offered in PDIP, SOIC, MSOP and TSSOP packages.
The datasheet provides detailed electrical specifications, including supply voltage range (2.5 V–5.5 V), quiescent current (0.5 mA–1.35 mA), bandwidth (2 MHz–12 MHz), input noise (10 nV/√Hz at 10 kHz), and temperature ranges (‑40 °C to +125 °C operating, ‑65 °C to +150 °C storage). Pin functions, SPI timing diagrams and shutdown behavior are also described.
| Gain range | +1 V/V to +32 V/V |
|---|---|
| Supply voltage | 2.5 V – 5.5 V |
| Quiescent current | 0.5 mA – 1.35 mA |
| Input offset voltage | ±275 µV (max) |
| Input noise | 10 nV/√Hz @10 kHz (typ) |
| Bandwidth | 2 MHz – 12 MHz (‑3 dB) |
| Input leakage current | ±1 µA |
| Operating temperature range | -40 °C to +125 °C |
| Storage temperature range | -65 °C to +150 °C |
The device operates from a single supply of 2.5 V to 5.5 V.
It provides programmable gains from +1 V/V up to +32 V/V.
The -3 dB bandwidth ranges from 2 MHz to 12 MHz, depending on gain.
It can operate from –40 °C to +125 °C and be stored from –65 °C to +150 °C.
