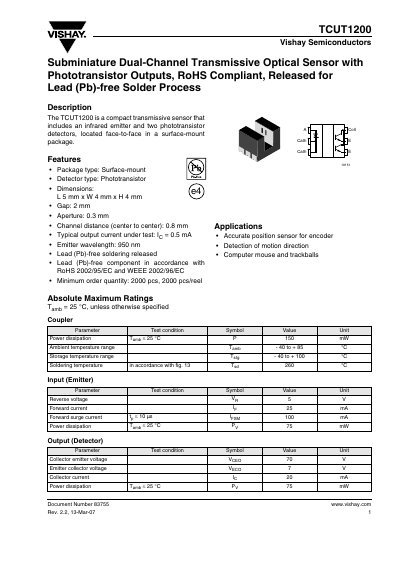

TCUT1200 is a miniature transmissive optical sensor with phototransistor outputs, released for lead (Pb)-free solder process.
The TCUT1200 is a sub‑miniature dual‑channel transmissive optical sensor packaged for surface‑mount use. It features an infrared emitter (950 nm) and two phototransistor detectors positioned face‑to‑face, with a 2 mm gap and 0.3 mm aperture. Typical output current is 0.5 mA and the device meets RoHS lead‑free requirements.
Electrical characteristics include a collector‑emitter voltage rating of 70 V, forward current of 25 mA, and power dissipation of 75 mW. The sensor operates from –40 °C to +85 °C ambient temperature and is suitable for applications such as accurate position sensing, motion‑direction detection, and computer mouse/trackball interfaces.
| Package type | Surface‑mount |
|---|---|
| Detector type | Phototransistor |
| Dimensions (L×W×H) | 5 mm × 4 mm × 4 mm |
| Gap | 2 mm |
| Aperture | 0.3 mm |
| Typical output current | 0.5 mA |
| Emitter wavelength | 950 nm |
| Ambient temperature range | -40 °C to +85 °C |
| Reverse voltage (VR) | 5 V |
| Forward current (IF) | 25 mA |
| Collector‑emitter voltage (VCEO) | 70 V |
The typical output current under test is 0.5 mA.
The emitter operates at 950 nm.
Both Level 2 (SnPb) and Level 3 (Pb‑free) reflow profiles are supported, with specific pre‑heating and heating times shown in the document.
The device is rated for a maximum collector current of 20 mA.
