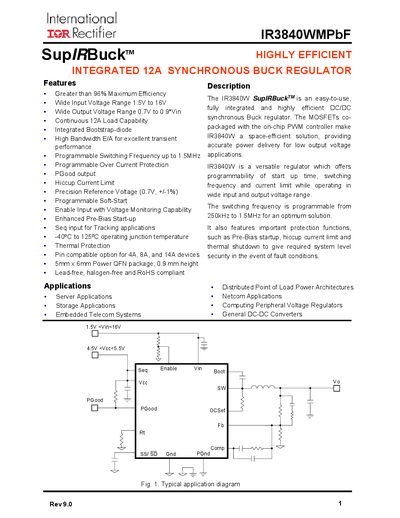

IR3840W is an easy-to-use, fully integrated and highly efficient DC/DC synchronous Buck regulator. It features wide input voltage range, wide output voltage range, high load capability and high efficiency.
The IR3840WMPbF is a fully integrated, synchronous buck regulator designed for low‑output‑voltage applications. It offers greater than 96 % efficiency, a wide input range of 1.5 V to 16 V, and programmable switching frequencies from 250 kHz up to 1.5 MHz.
The device includes multiple protection functions such as thermal shutdown, over‑current limit, and enable‑input monitoring. It is supplied in a 5 mm × 6 mm QFN package and is RoHS‑compliant, making it suitable for server, storage, telecom and other point‑of‑load power architectures.
| Input Voltage Range | 1.5 V – 16 V |
|---|---|
| Output Voltage Range | 0.7 V – 0.9 × Vin |
| Continuous Output Current | 12 A |
| Switching Frequency | 250 kHz – 1.5 MHz (programmable) |
| Maximum Efficiency | >96 % |
| Package | 5 mm × 6 mm Power QFN, 0.9 mm height |
| Thermal Shutdown Temperature | 140 °C |
The device achieves greater than 96 % maximum efficiency.
It operates with an input voltage from 1.5 V up to 16 V.
The switching frequency is programmable via external resistors, ranging from 250 kHz to 1.5 MHz.
