The 6F(R) series standard recovery diodes have high surge current capability, offering avalanche types and stud cathode and stud anode versions. They have a wide current range and can handle voltages up to 1200V VRRM. These diodes are commonly used in battery chargers, converters, power supplies, and machine tool controls.
The 6F(R) Series standard recovery diodes are designed for high‑surge current capability and are offered in stud‑cathode and stud‑anode versions. Typical applications include battery chargers, converters, power supplies, and machine‑tool controls.

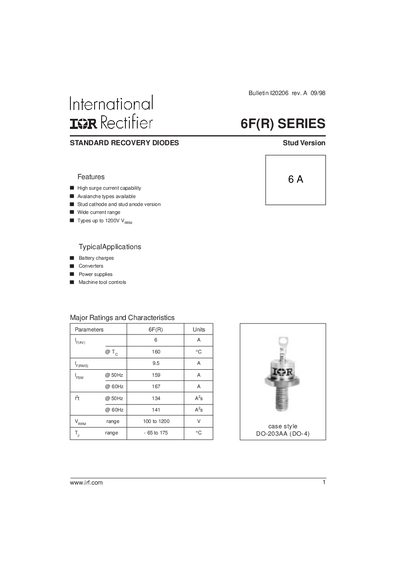

The bulletin lists key electrical ratings such as a maximum average forward current of 6 A, RMS forward current of 9.5 A, and voltage ranges from 100 V to 1200 V. Thermal specifications cover a junction operating temperature range of –65 °C to 175 °C and a case style of DO‑203AA (DO‑4). Ordering information and mechanical outlines are also provided.
| Maximum average forward current | 6 A |
|---|---|
| Maximum RMS forward current | 9.5 A |
| Non‑repetitive surge current (83 ms) | 167 A |
| Voltage rating range | 100 V to 1200 V |
| Junction operating temperature range | -65 °C to 175 °C |
| Case style | DO-203AA (DO-4) |
Typical applications include battery chargers, converters, power supplies, and machine‑tool controls.
The maximum average forward current is 6 A.
The diodes are rated from 100 V up to 1200 V.
The junction can operate from –65 °C to 175 °C.
